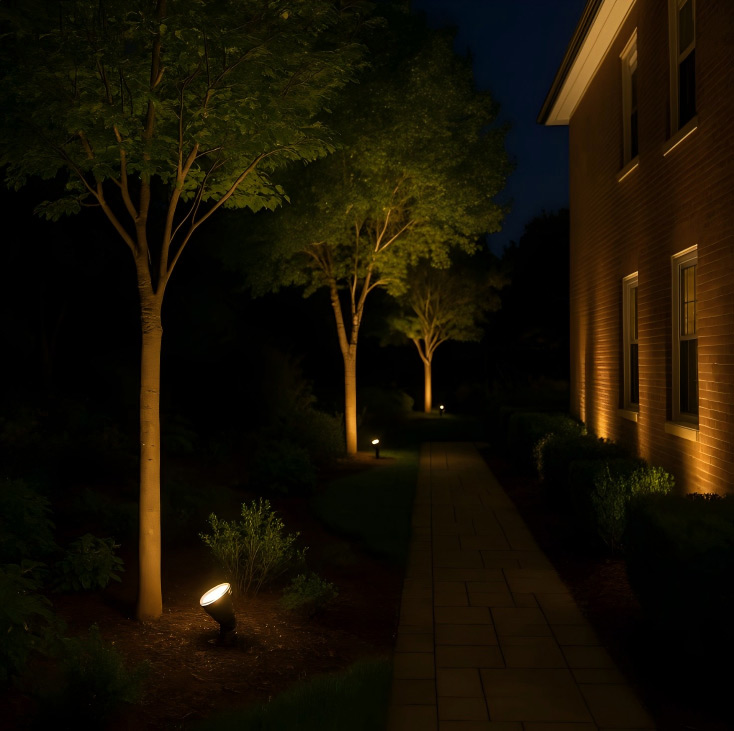

Fig. A — Heritage Façade Wash with SYA-604

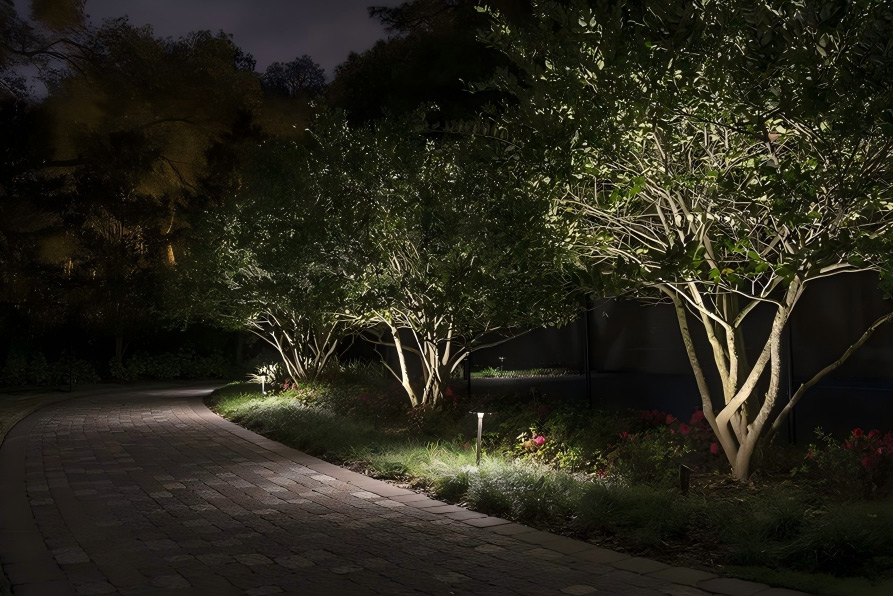

Project: Villa Garden Lighting

Model :SYA-604

Electrical: AC100–277V, protected junctions, 6 kV surge

Optics: 25° medium; 3000 K; SDCM ≤3

Installation: Brackets at 1.2 m offset; aim angle 18°; visor for glare control

Control: 0–10V dimming

Acceptance: Vertical E ≥ 100 lx at base; uniformity ≥ 0.4; no trespass above cornice

Outcome: Even, elegant wash with reduced power vs. legacy MH by ~60%
